~ Boxed Theodolite by E.R Watts & Son London No 36673 ~
The Boxed Theodolite by E.R. Watts & Son, London is a precision surveying instrument used to measure both horizontal and vertical angles. Theodolites were essential for land surveying, engineering, and construction projects where accurate angular measurements were necessary.
E.R. Watts & Son was a highly regarded British manufacturer of precision optical instruments, including theodolites, sextants, and other surveying tools. Established in 1857 by Edwin Watts in London, the firm gained a reputation for producing some of the finest instruments of its time.
Theodolites typically consist of a mounted telescope that can rotate along both horizontal and vertical axes. The instrument is mounted on a tripod for stability.
~ The scales ~
Vernier Scales: Used for reading precise angular measurements.
Circular Scales: Calibrated in degrees to measure horizontal and vertical angles.
Spirit Levels: Integrated to ensure the instrument is perfectly level for accurate readings.
Tripod Mounting: Provides a stable base for accurate measurements in the field.
Optics: High-quality lenses for sharp and clear sighting, with crosshairs within the telescope for precise aiming.

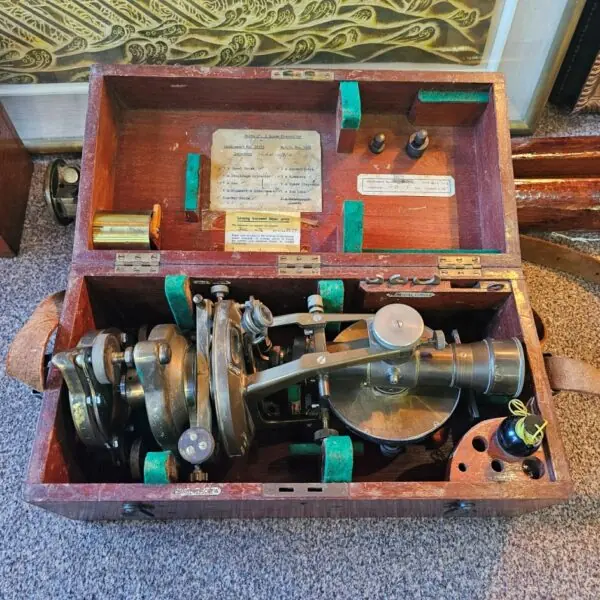

The theodolite comes with a fitted wooden storage box that houses the instrument along with any accessories such as plumb bobs, tools for adjustment, or additional eyepieces. The box is built to protect the delicate instrument during transport.
History:
E.R. Watts & Son began operations in 1857 in London, later moving to a larger factory to accommodate growing demand. They were well-known for their military contracts, supplying instruments to the British military, particularly during World War I and II. Their theodolites were used by military engineers for trench mapping, artillery placement, and battlefield surveying.
Innovations: Watts & Son were pioneers in using precision machine tools to improve the accuracy of their instruments. The firm continuously developed its theodolite designs to improve precision, ease of use, and durability. The instruments were widely used in civil engineering, particularly for railway construction, road planning, and land surveying.
Legacy: E.R. Watts & Son remained one of the foremost makers of surveying instruments in Britain well into the 20th century. They were known for their craftsmanship and attention to detail, and their instruments became a symbol of reliability and precision. Many of their theodolites are now sought after by collectors and are sometimes still used for practical applications in specialized fields.
The boxed theodolites made by E.R. Watts & Son are highly valued today not only for their historical significance but also for their functional beauty. They represent the pinnacle of Victorian-era and early 20th-century engineering, showcasing the precision and craftsmanship required in a time before the advent of digital instruments.
