Original German WWII 7.3cm Propagandawerfer 41 Rocket

~ Original German WWII 7.3cm Propagandawerfer 41 Rocket ~

The Propagandawerfer 41 was a rocket launcher for the associated non-lethal Propagandagrante 41 rocket. The launcher and rocket were a light man-portable system fired by specially-trained propaganda troops during World War II to distribute leaflets.

The Propagandawerfer 41 consisted of a light 12.26 kg steel tube framework. The base of the launcher was triangular in shape and had a crossbar through the center with a hinge that connected the base to a circular launch cage. At the tip of the base there was an adjustable arm for elevating the launch cage and in the center of the launch cage was a trough which the Propagandagranate 41 rocket was launched from. The rocket rested at the top of the cage until the crew pulled a lanyard, the rocket then slid down until it hit a firing pin which launched the rocket.

The Propagandagrante 41 was constructed of a plastic (bakelite) nose cone which held 200 leaflets weighing .23 kg that were rolled around a coiled spring and a metallic base which held the solid rocket. When the rocket was fired propellant gasses were forced
through a steel base plate that had angled venturis drilled in it to impart spin. A delay fuse was also ignited and a bursting charge separated the nose cone from the base at an altitude of 100–150 m (330–490 ft), the spring then uncoiled to scatter the leaflets.

~ Condition ~

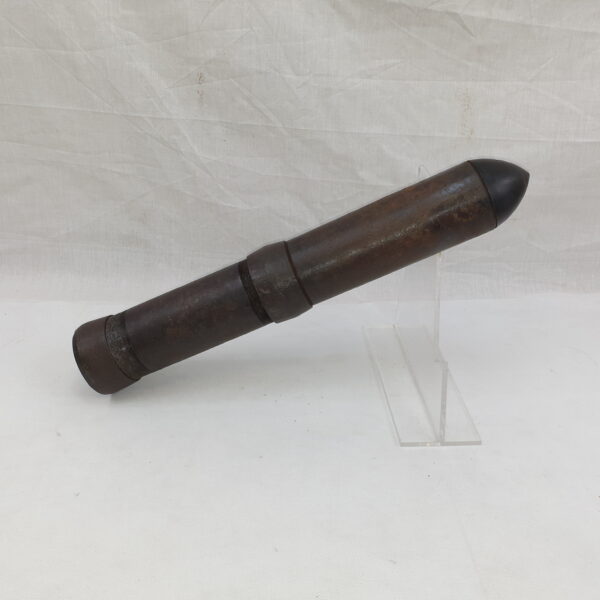

The piece is in good condition for its age. The lid comes off.

There is a chip of the Bakelite thread but otherwise the piece is fine.

JAQ

The leaflets or the launching frame are not present. The pictures containing throes are for demonstrative purposes only.
